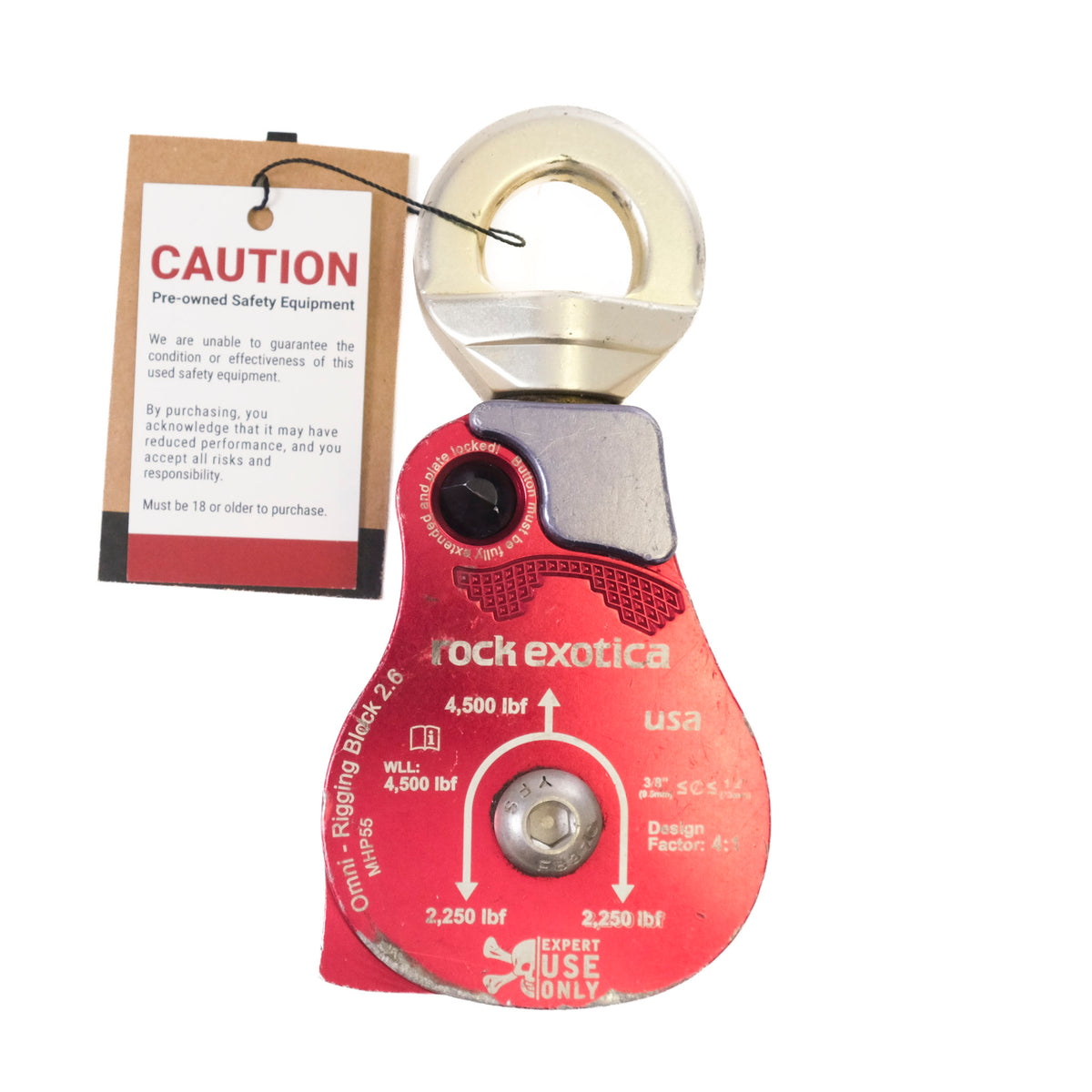

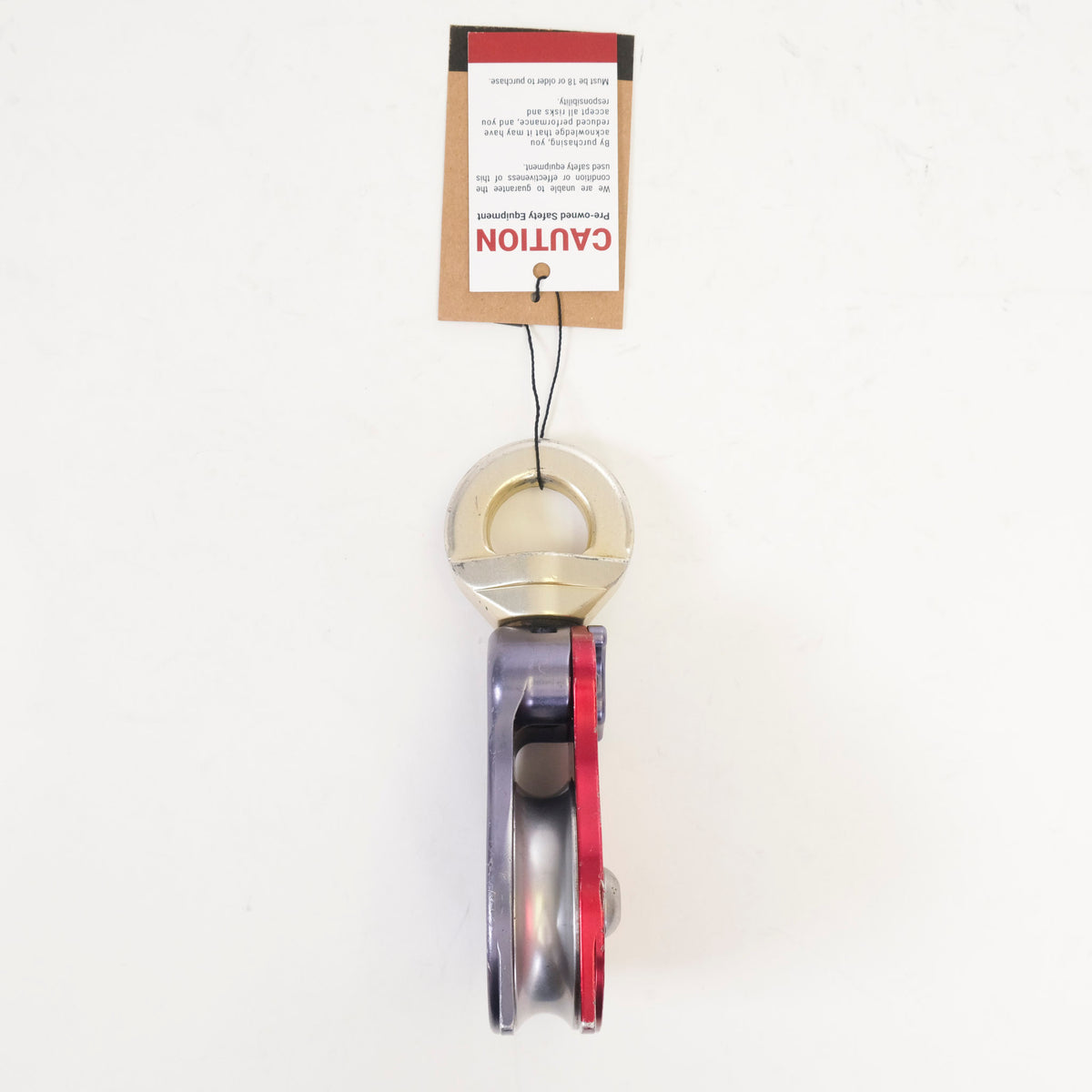

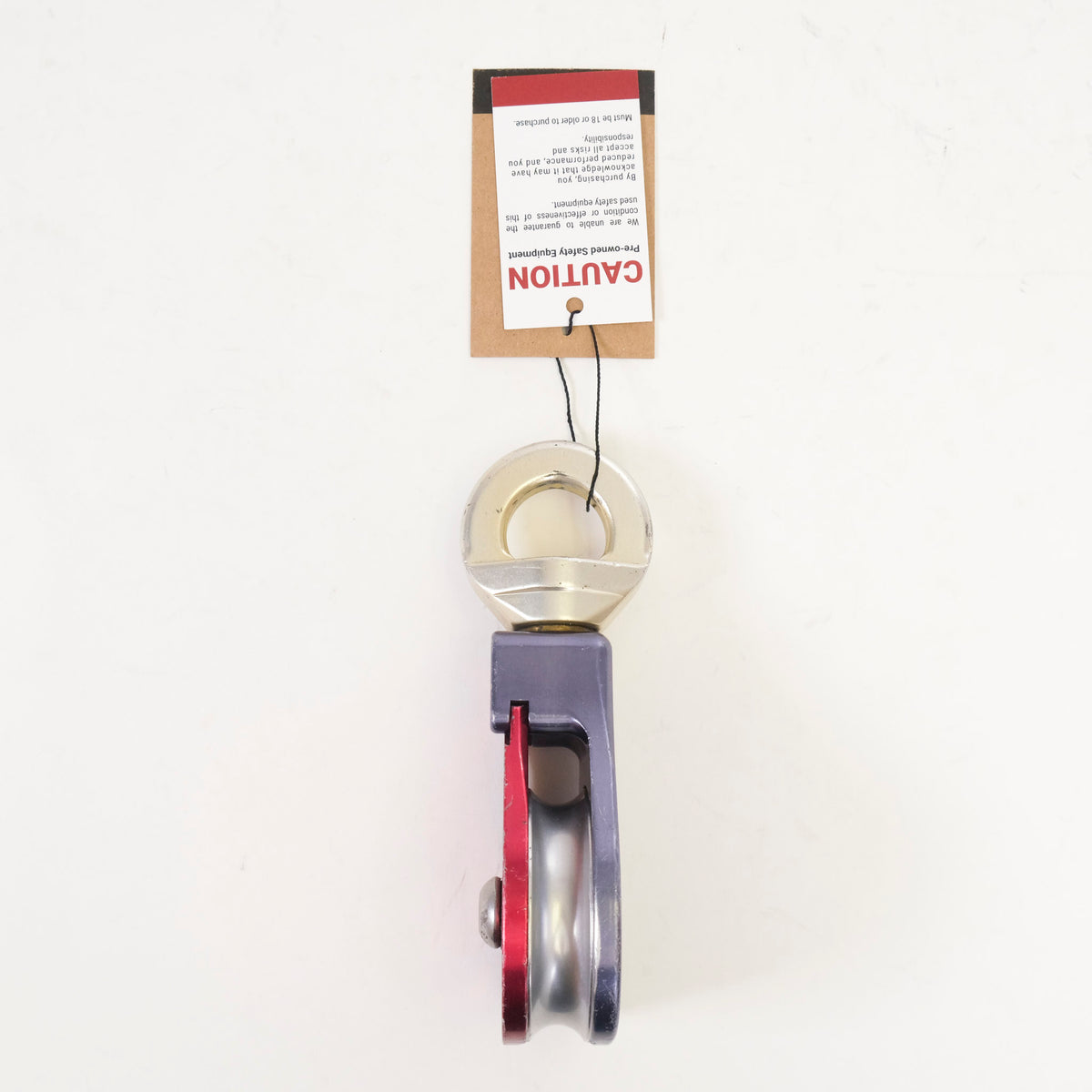

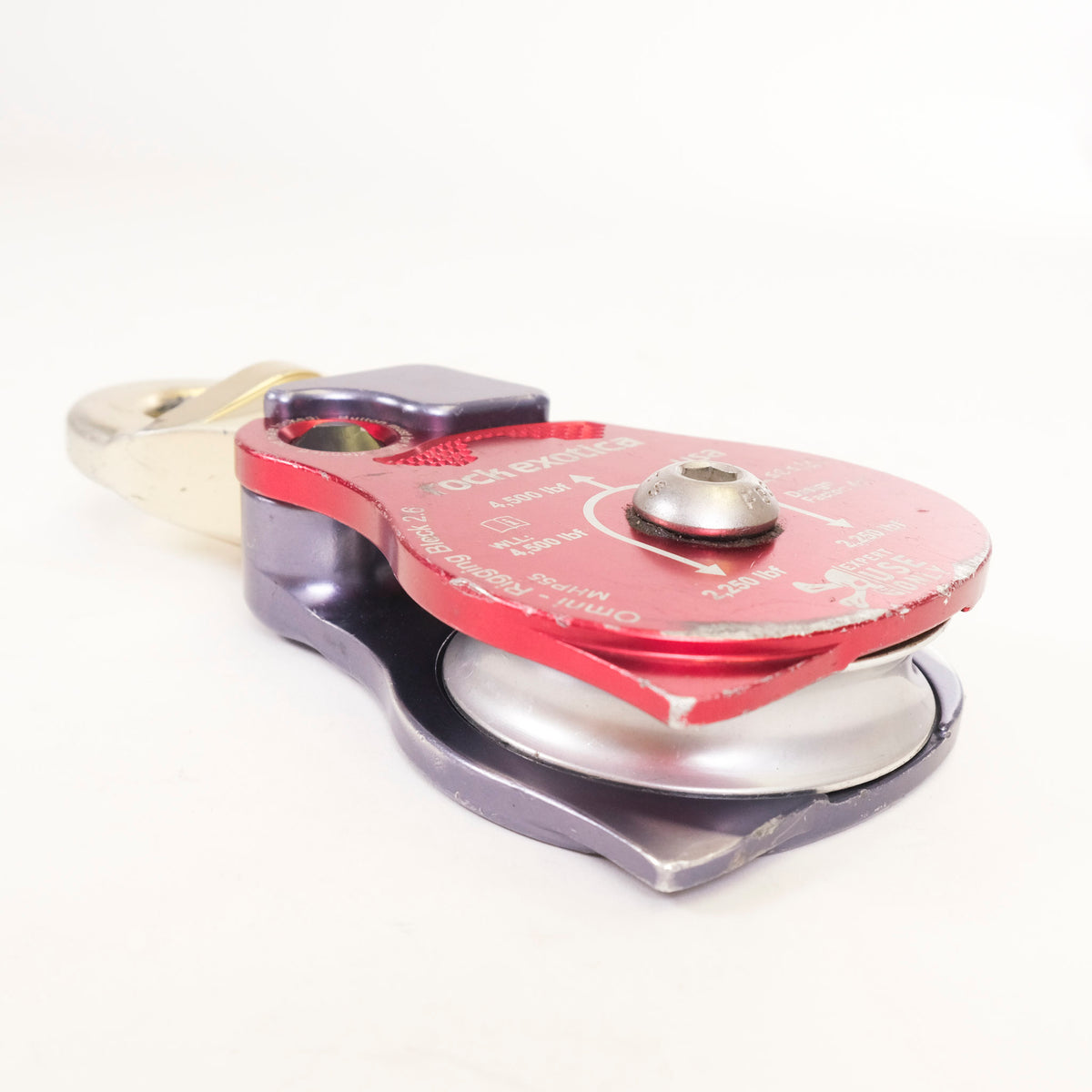

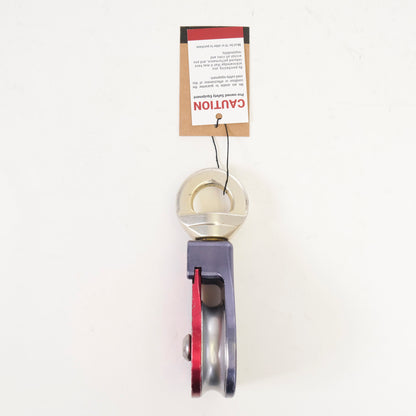

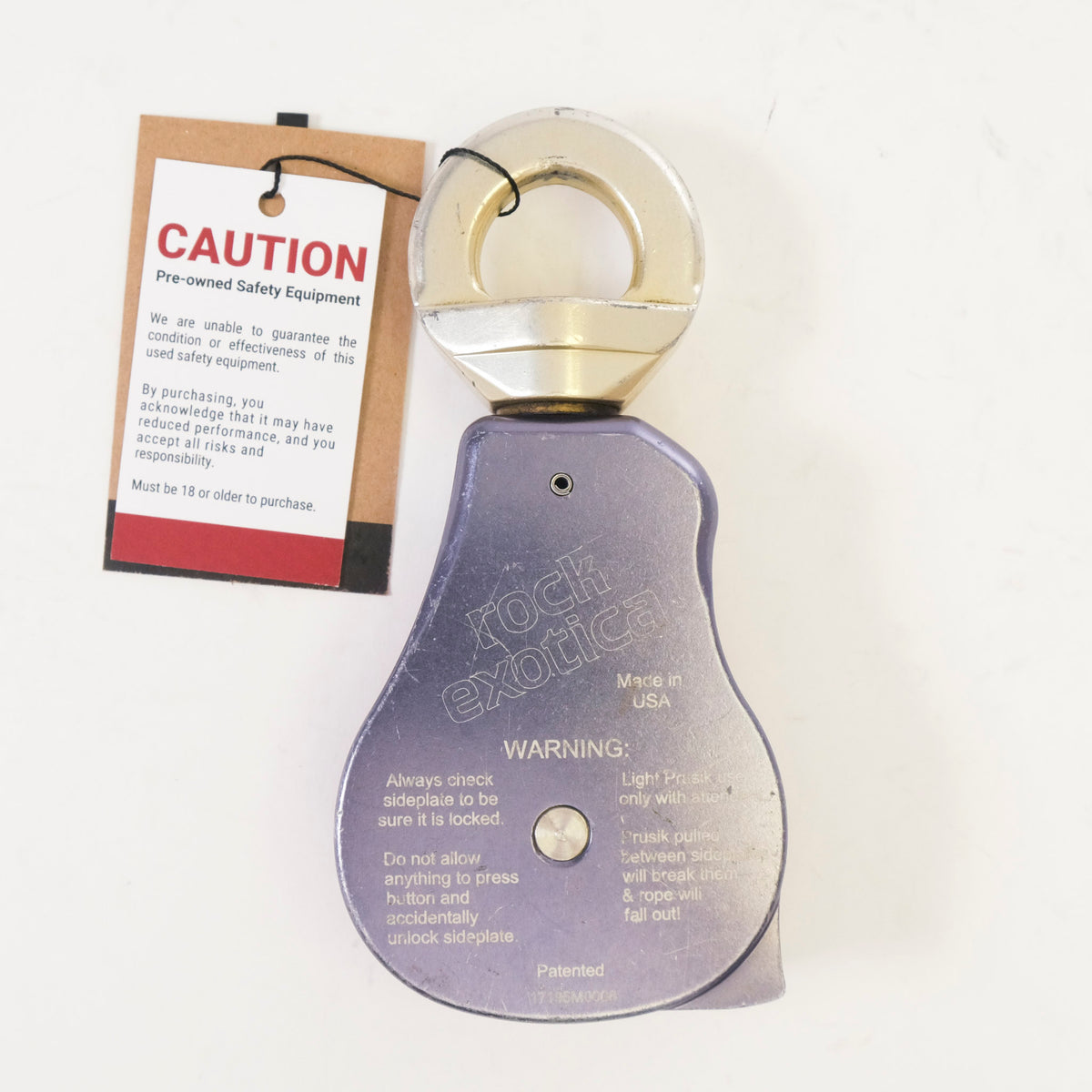

Omni-Rigging Block 2.6 Pulley

The Material Handling Omni 2.6" brings heavy duty rigging to the Omni family with a Working Load Limit (WLL) of 4500 lbf. In addition to the large 2.6" sheave, the MHP55 features a prusik minding sideplate, and push-button access to open the sideplate to install rope. Whether used in a hoisting system with a capstan winch or in general industrial rigging, this rigging block provides a high-strength and lightweight solution needed for tower climbers and industrial riggers.

The Omni-Block combines a swivel and pulley into one tool, and incorporates a unique sideplate that opens while the pulley is still attached to the anchor. Traditionally, a pulley is connected to a swivel by a carabiner. However, the Omni eliminates the need for the carabiner, reducing length and pieces of equipment in the rigging system. The short length of the Omni is important when used in high-angle, confined space or other space-sensitive rigging environments. The reduced weight of the Omni will make hauling your gear easier. Additionally the Omni sideplate can be opened without detaching from the carabiner. Traditional pulleys require removing from the carabiner to change the rope. With the Omni, the user is able to do this while the pulley is still secured.

The Omni Swivel Pulley is made the same unique way that many of Rock Exotica products are made—from solid material. The design and function of the pulley require a strong core from which the sheaves, side plates, and swivel top must connect. Rock Exotica relies on the capability of their state of the art machining centers to take a solid block of aluminum and cut away material to create this integral part.

With precision available only on such a machine, the block of aluminum is transformed into an axle, head piece, becket, and release button housing all in one. The result is a pulley that is lighter, stronger, and more compact than those made by traditional methods and stamped parts.
