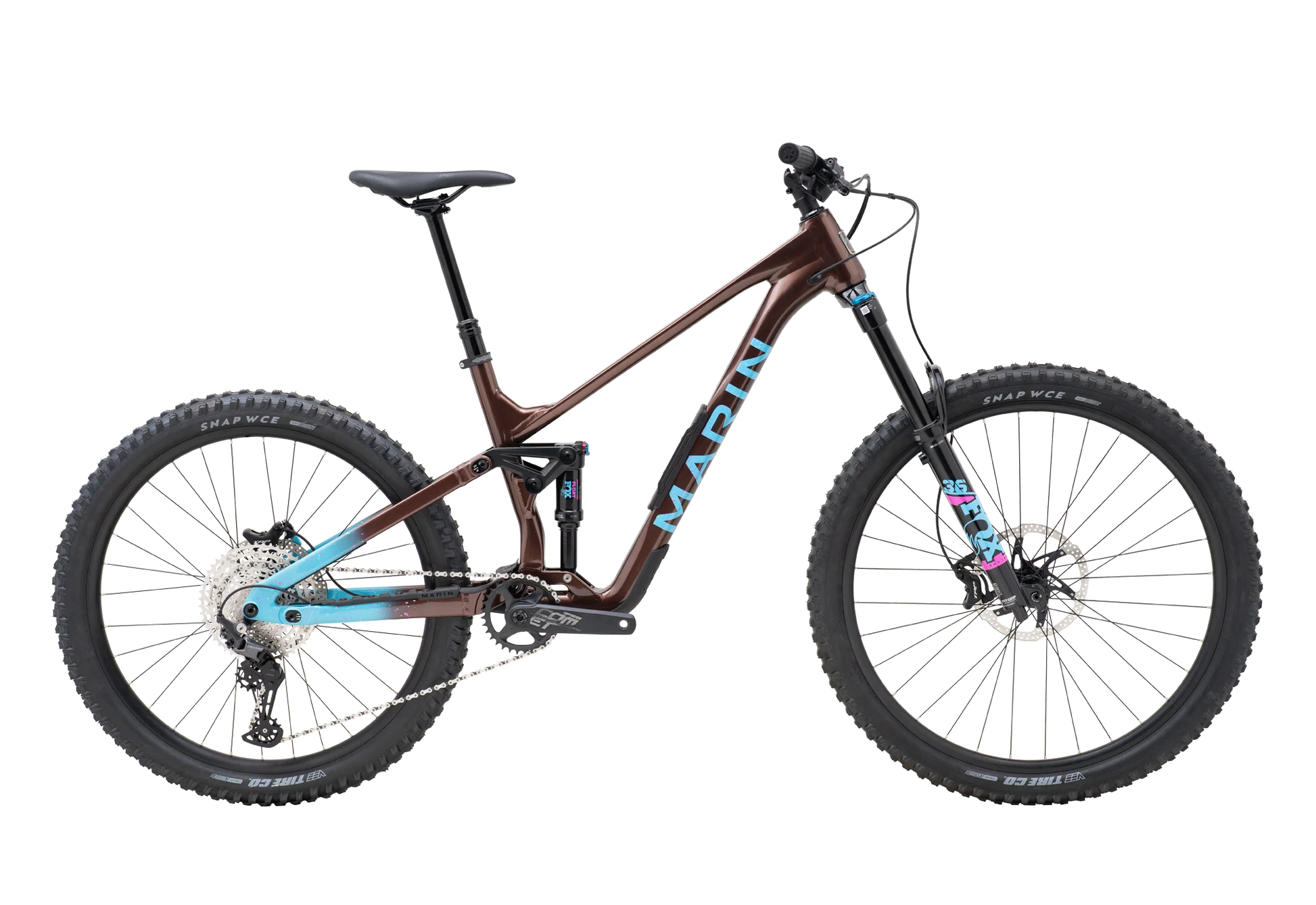

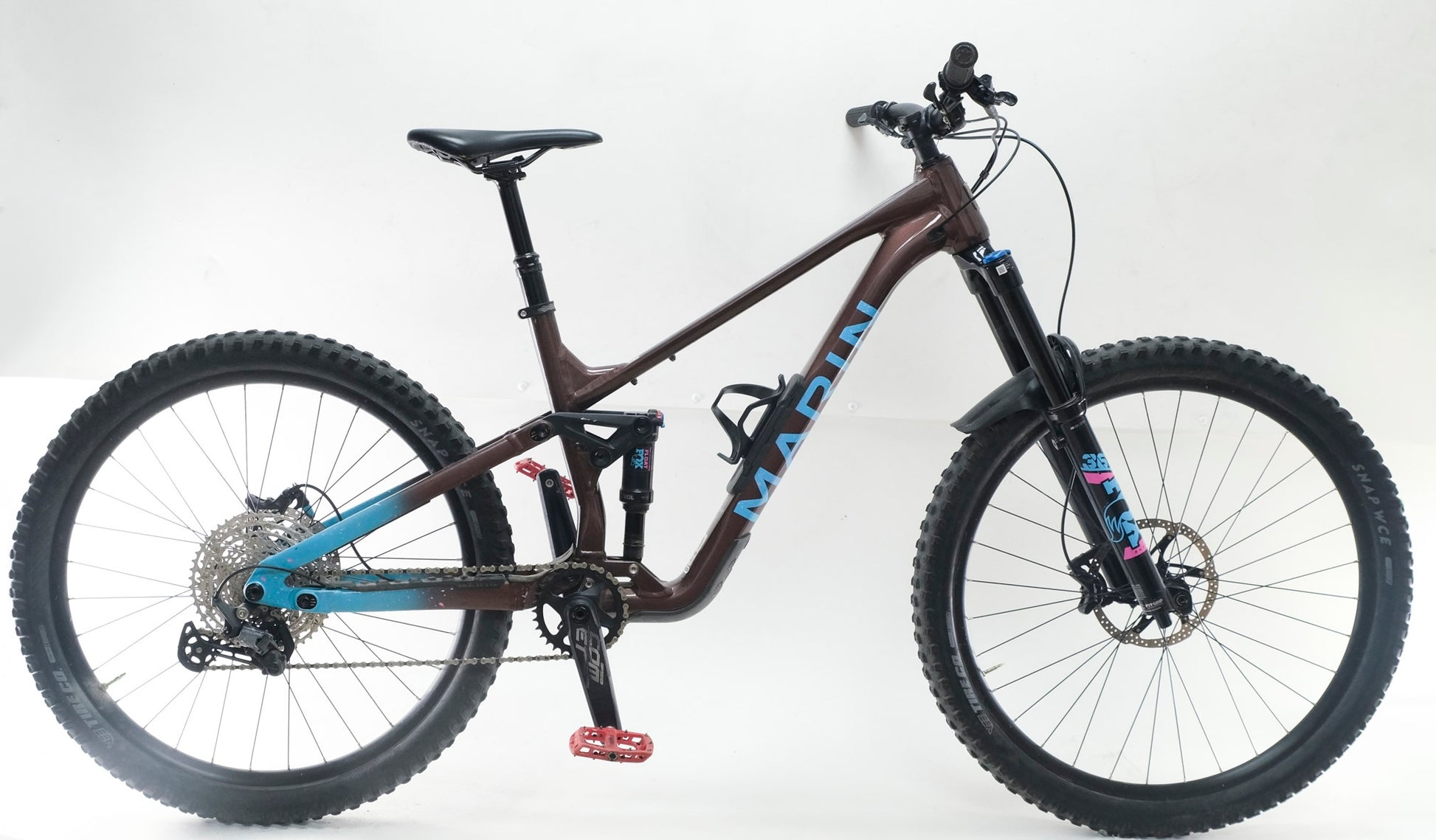

Marin 2025 Alpine Trail 1

The new Marin Alpine Trail Series 4 aluminum MultiTrac 2 LT frames feature mixed 29”/27.5” wheels, 170mm front and 160mm rear travel, and the utmost in adjustability. Riders can alter the head tube angle and bottom bracket/chain stay length, as well as run 29” rear wheels if desired. “Bear Box” downtube storage includes a zippered nylon bag to house trail essentials, and a 34.9mm seatpost increases strength and is compatible with the latest dropper posts.

While the Alpine Trail 1 is the starting point in the three-model lineup, we didn’t make any concessions regarding the spec. High-performance Fox suspension keeps you in control at all times, while a Shimano Deore 12-speed drivetrain transmits your power to the wheel. TRP’s Slate Evo 4-piston brakes feature 203mm rotors, keeping speed in check in a powerful, fade-free manner.

Fork

Fox 36 Rhythm, 170mm Travel, 29", Grip Damper, 110x10 Kabolt, 44mm Offset

Frame

All New Series 4 6061 Aluminum Frame, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rear Suspension

Fox Float Performance, 205x65, 30xM8 Lower Hardware, Custom Tune

Rim

Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Hub Rear

Shimano HB-MT410B, 148x12mm, Centerlock, Microspline Freehub Body

Hub Front

Shimano HF-MT410B, 110x15mm, Centerlock

Spokes

14g

Tires

Vee Tire Flow Snap, 29x2.6" Front 27.5x2.5" Rear, Top 40 Compound, Enduro Core, 72 TPI, Tubeless Compatible

Shift Lever

Shimano Deore, 12-Speed, SL-6100-IR

Crankset

FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Bottom Bracket

Mego EXO 73mm BSA

Chain

KMC X-12 Silver and Black

Cassette

Shimano, Deore M6100 12-Speed, 10-51T

Brakes Front

Tektro Slate EVO, 4-Piston Hydraulic Disc Brake, Resin Pads, 203mm Rotor

Brakes Rear

Tektro Slate EVO, 4-Piston Hydraulic Disc Brake, Resin Pads, 180mm Rotor

Brake Levers

Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible

Handlebar

Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem

Marin 3D Forged Alloy, 35mm

Grips

Marin Grizzly Lock-On

Headset

FSA Custom Headset, Adjustable HTA Design

Seatpost

TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

Saddle

Marin Speed Concept
